Catering to all requirements of major Diesel Engine manufacturers, OEM’s and auto ancillaries.
Leader in Speciality Tubes
ISO 9001:2015 & IATF 16949:2016 Certified Organization
Leader in Speciality Tubes
ISO 9001:2015 & IATF 16949:2016 Certified Organization

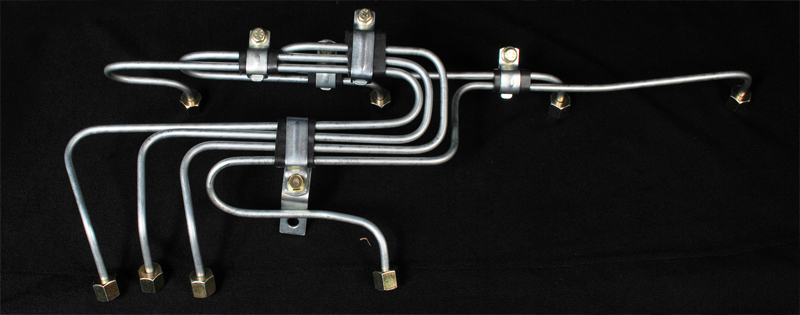

Gandhi Special Tubes manufactures High Pressure Fuel Injection Tubes for Diesel engines for automobiles and Construction Equipment. The tubes are designed for clean surfaces, dimensional accuracy, ductility and reliable forming performance.
Trusted across industries that demand strength, precision, and reliability.
High-pressure precision tubes engineered for automotive diesel fuel injection.
Precision fuel injection tubes engineered for reliable tractor engine performance.
Why choose our High Pressure Fuel Injection Tubes
Catering to all requirements of major Diesel Engine manufacturers, OEM’s and auto ancillaries.
Tubes are exclusively manufactured out of fully Aluminium killed steel to avoid problem of ageing which can lead to embrittlement & cracks.
We closely monitor and control the dissolved gas content and trace elements in our Raw Material.
Surface roughness on internal surface is well below 2 Microns Ra
Default surface imperfection level is as per bore grade “R” according to ISO 8535. (Bore grade “P” can be supplied on prior agreement).
Tubes are heat treated above the upper critical transformation temperature, resulting in exceptionally bright, scale-free, soft, and ductile tubes.
Our tubes ensure an unparalleled level of reliability and ductility for various forming operations like bending, flaring, fluting, soldering, and ferrule biting.
We offer flexible manufacturing options, delivering in small batch sizes or large orders, ensuring that you receive the quantity you want, precisely when you need it.
At Gandhi Special Tubes Ltd, tubes and nuts are supplied in accordance with appropriate International Standards in a large variety of steel grades and dimensions. Client specific requirements on technical parameters are offered on request.
Technical guidance
A high-pressure fuel-injection tube - also called an injection pipe, injector pipe or injector tube - carries diesel from the injection pump to the injector at very high pressure. Gandhi manufactures these tubes for demanding fuel-injection systems, with the internal cleanliness and strength required for reliable performance.
Gandhi's high-pressure diesel fuel-injection tubes are made with reference to DIN 73000, ISO 8535 and SAE J1958, which cover dimensions, internal bore quality and material requirements for injection tubing. The applicable standard and bore grade are agreed with the customer at the drawing stage.
Bore grade describes the permitted level of surface imperfections in fuel injection tubes as per ISO 8535-1. Grade "S" is the standard bore grade & other bore grades can be considered on specific requirement.
Under high pressure, rough surface erodes faster & can cause problems to the injector, resulting in injector choking; hence internal surface cleanliness & finish is important.
Fuel-injection tubes are typically small-bore, thick-wall tubes made to the customer's engine and pump drawing rather than a fixed catalogue size. Share the outside diameter, bore/inside diameter, wall thickness, length and end-forming requirement, and we will confirm what can be supplied.
Yes. High-pressure fuel-injection tubes are made under Gandhi's ISO 9001:2015 and IATF 16949:2016 certified quality system, which is appropriate for safety-critical diesel fuel systems. Inspection, internal-cleanliness and material documentation can be provided against your applicable standard and purchase order. Please include any customer-specific quality or PPAP requirement with your enquiry so it can be planned in.
Please provide the tube OD/ID, length, applicable standard, bore grade and quantity.
